Cummins 20kVA Diesel Generator - GFE22CSC-1 Trailerised
Elevate your power solutions with GFE Power Products trailerised Cummins-powered diesel generators, built with the renowned Cummins engine and Stamford alternator. Designed for mobility, durability, and performance, our trailerised range spans 20kVA to 100kVA.

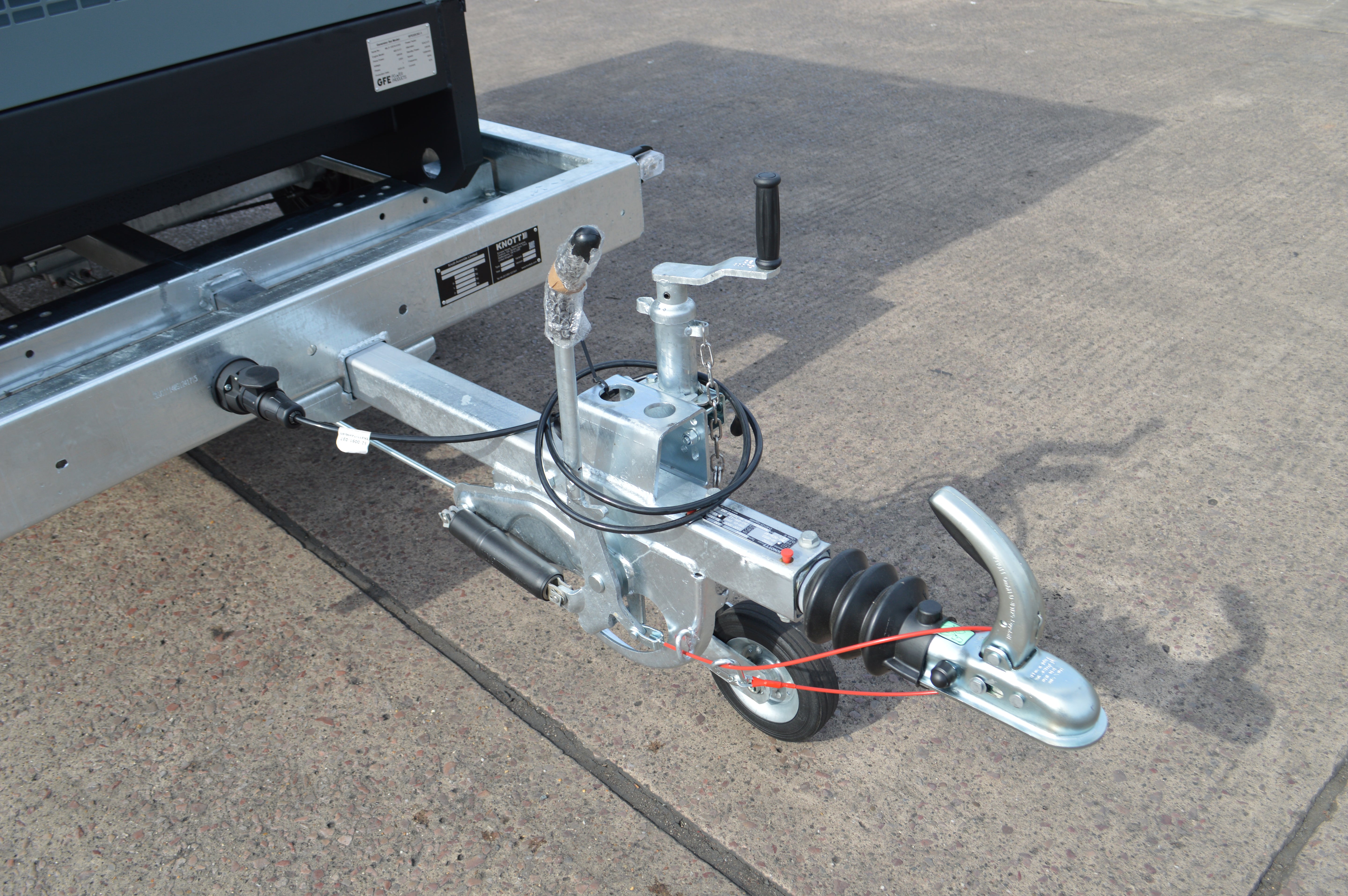

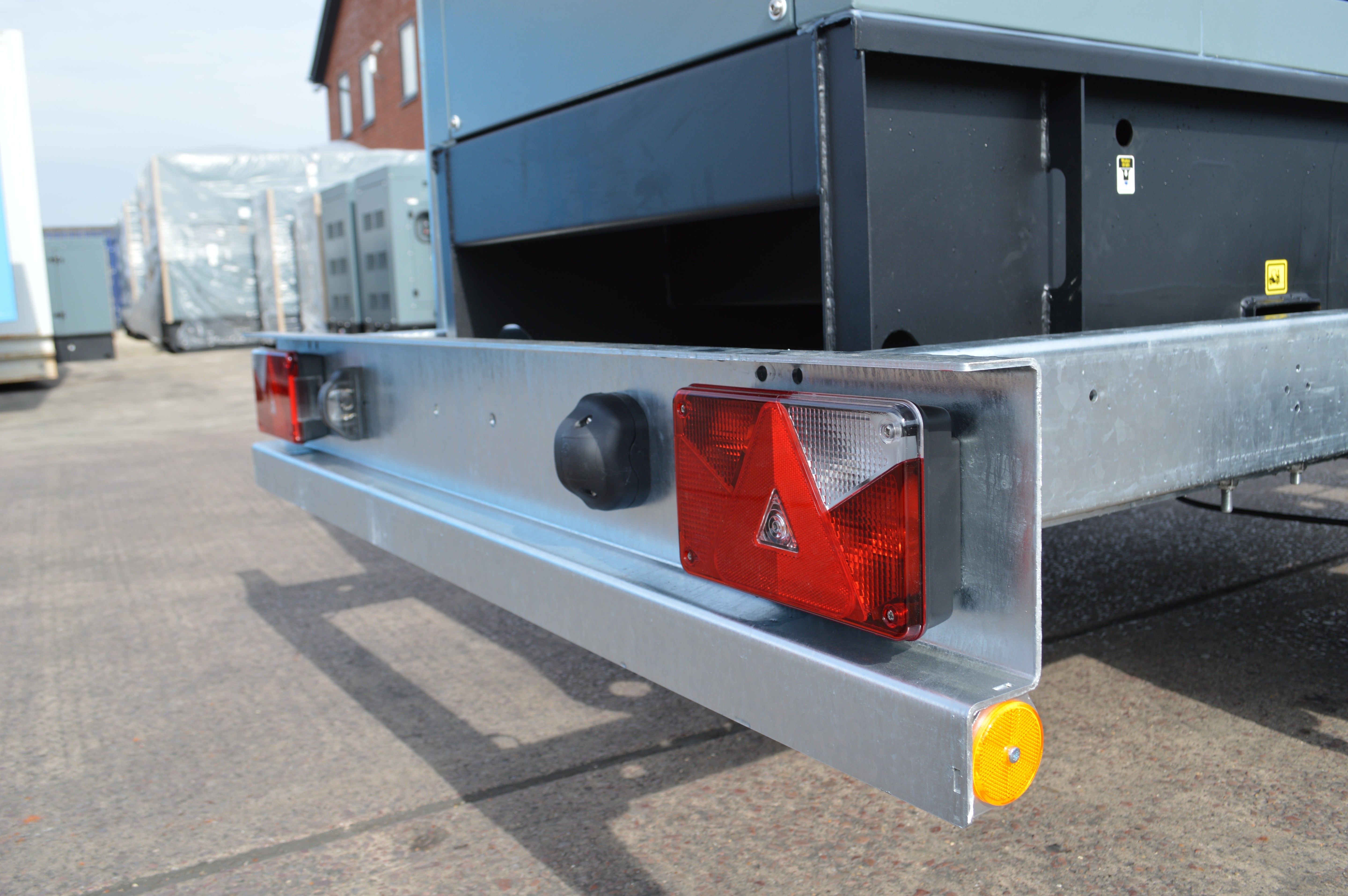

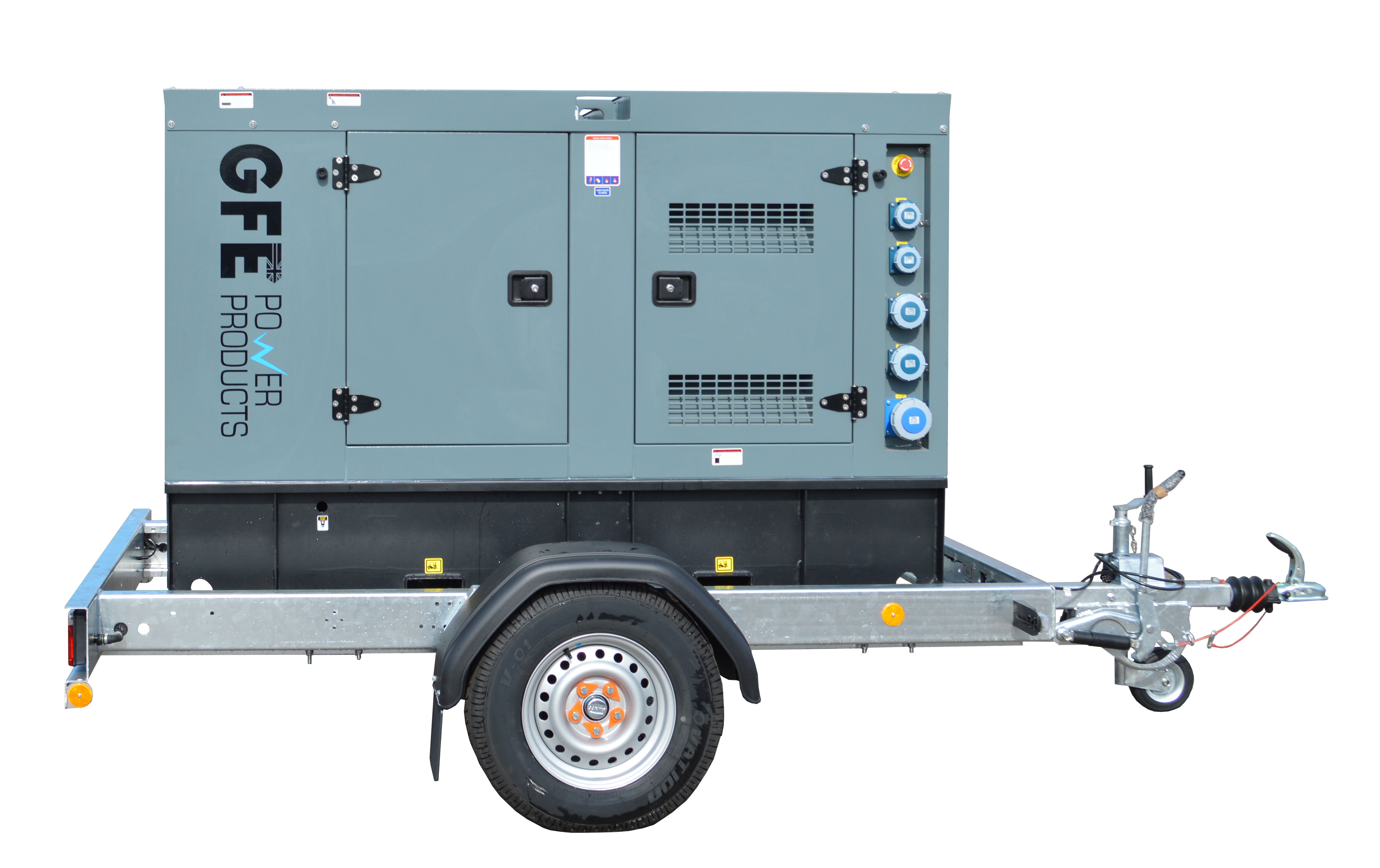

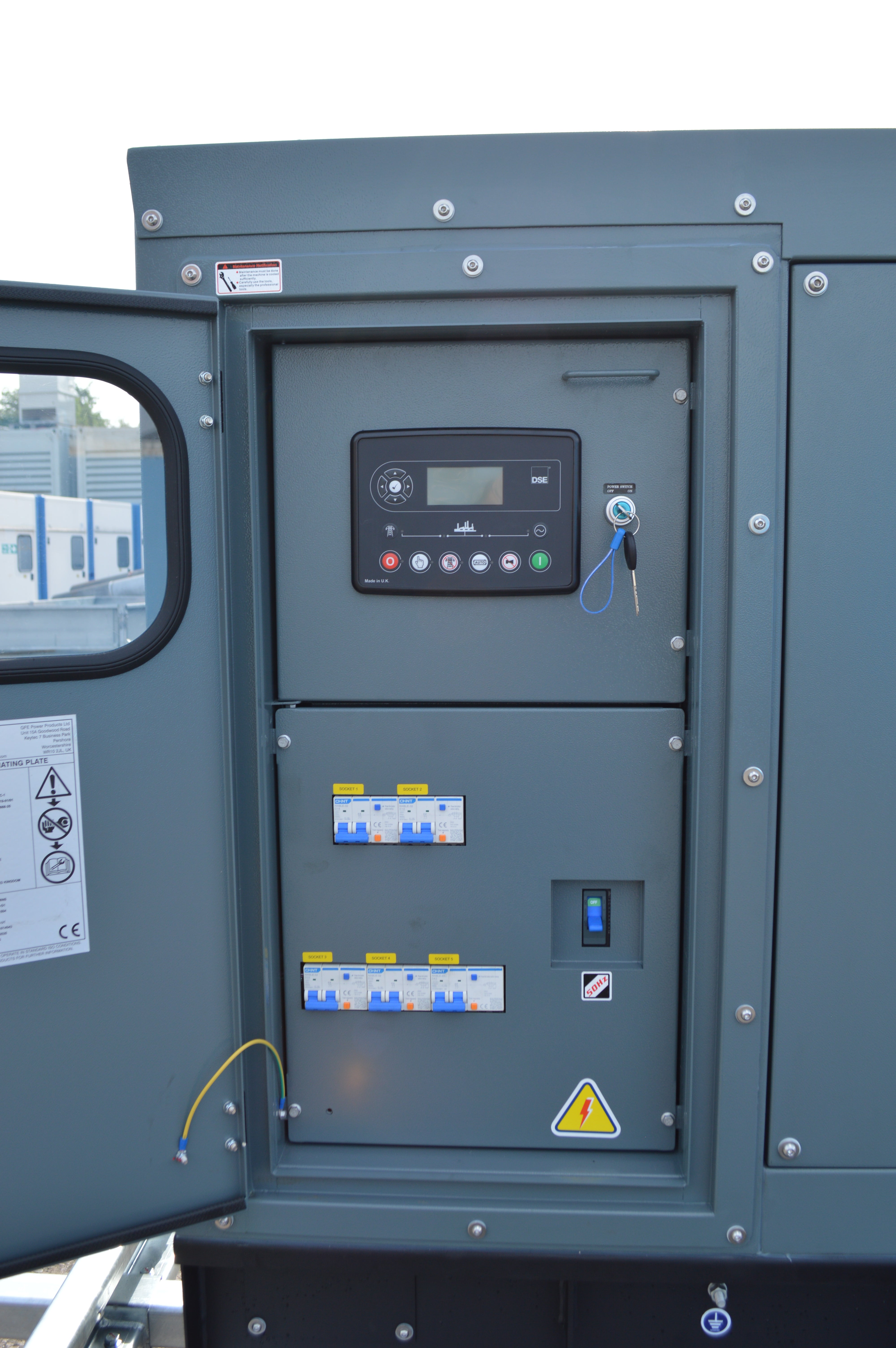

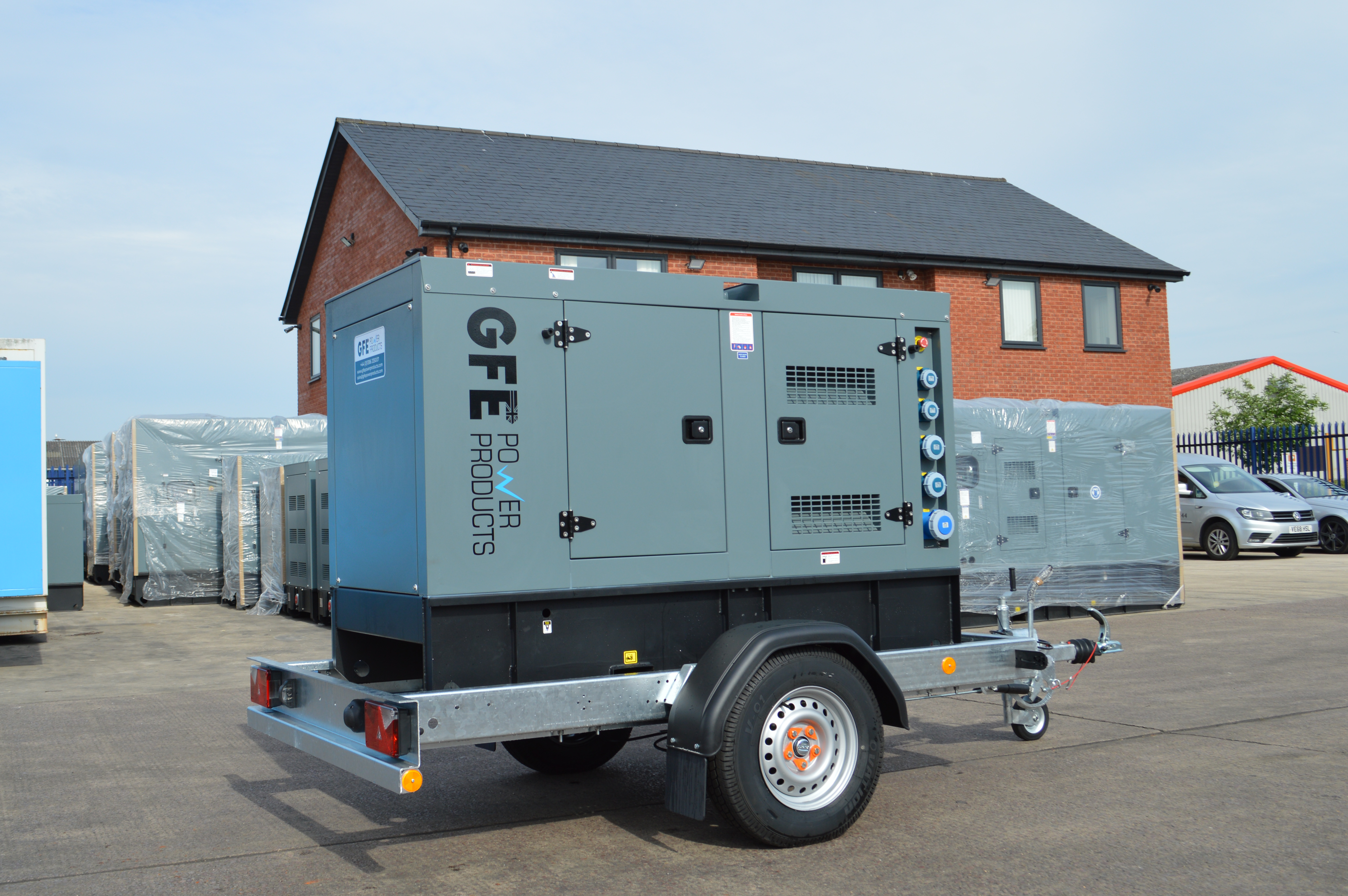

The 20kVA GFE22CSC-1 is a single phase Cummins-powered diesel generator mounted on a road-tow trailer for easy transportation. It is housed within a compact, sound attenuated canopy for low noise operation. All trailerised GFE Cummins Powered diesel generators are fitted with Deepsea control panels, with the GFE22CSC-1 featuring the DSE6120 as standard.
Cant see the size you're looking for? Just get in touch. We can supply any size you need.
Important Note:
If you plan to tow your new generator on public highways, make sure to comply with your local government regulations. For example, UK law requires all trailerised generators used on public roads to meet Stage V (Tier 5) emissions standards. Please check with your local authority or ask our team for guidance.
| Model reference | GFE22CSC-1 (Canopied/Trailered) |
| Engine | Cummins 4B3.9-G1 |
| Alternator | Stamford PI144G |
| Control panel | Deepsea DSE6120 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 1-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 16 | 20 |
|
Standby Power (ERP) |
18 | 22 |
|
Voltage |
230V |
| Rated current | 44 Amps |
| Fuel consumption | @100% load L/h 7.1 |
| Noise Level | 72 dB(A) @ 7m |
Overall dimensions of generator without trailer
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 2150 x 985 x 1420 | 1240 | 100 |
| Open |
Datasheets
| Generator: | Engine: | Alternator: |
| 20kVA GFE22CSC-1 | Cummins 4B3.9-G1 | Stamford PI144G |
 |
|
|
