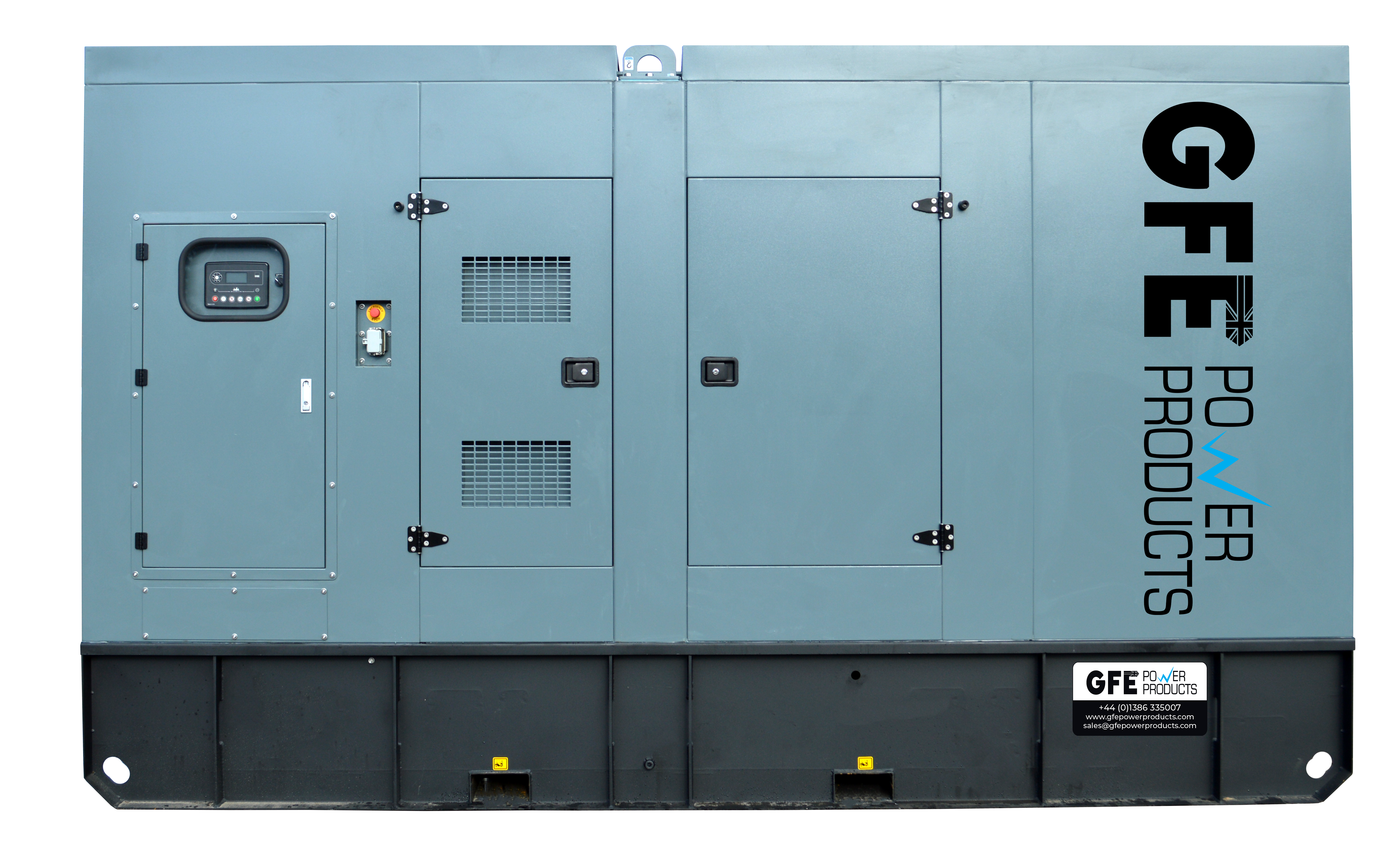

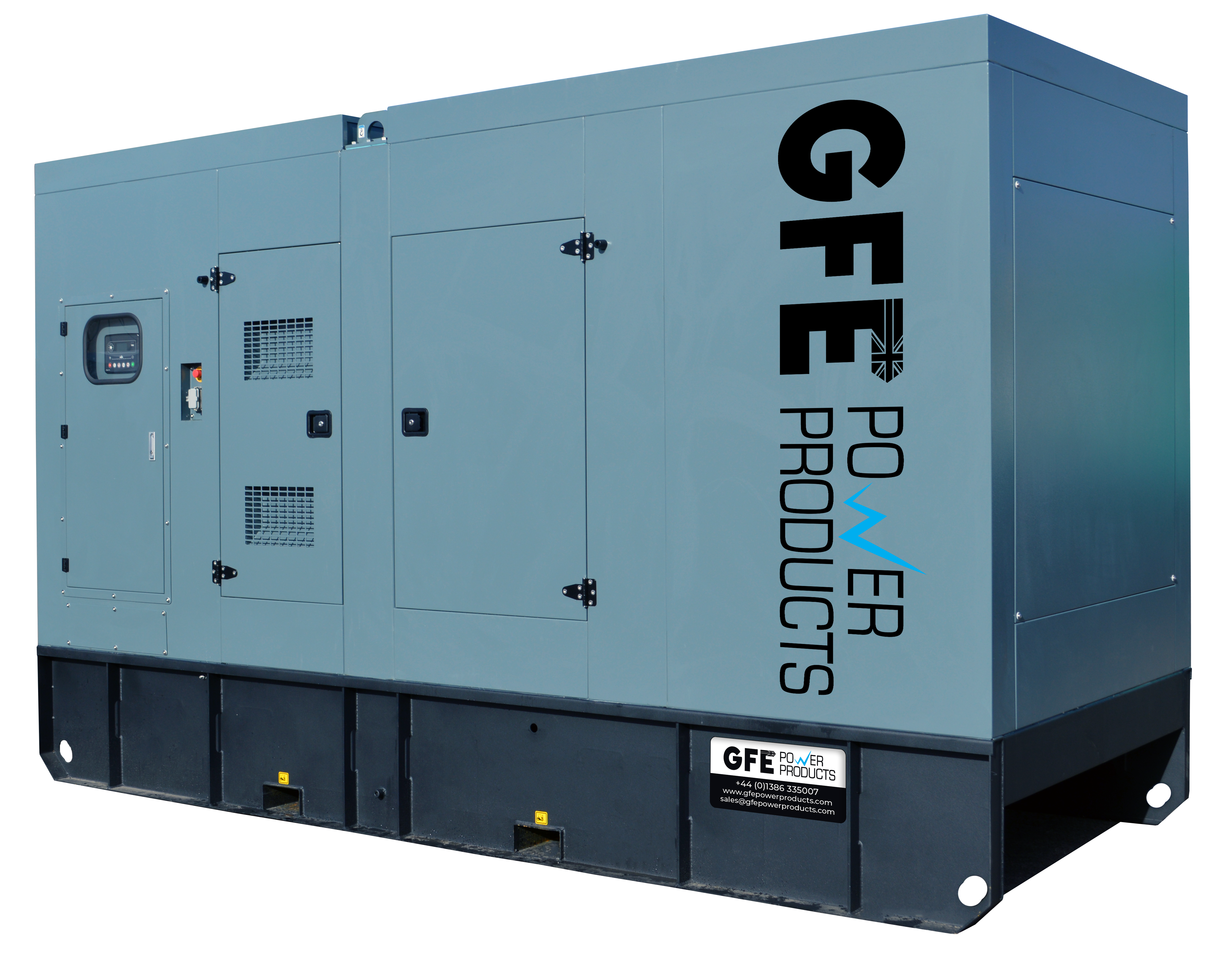

Cummins 500kVA Diesel Generator - GFE550CSC

Call Now kVA Calc

Welcome to the forefront of power solutions with GFE Power Products' bespoke Cummins-powered diesel generators, featuring the illustrious Cummins engine and Stamford alternator. Engineered for resilience and offered at competitive prices, our GFE Cummins Powered generators extend from 20kVA to 650kVA.

Model reference	GFE550CSC (Canopied)
Engine	Cummins QSZ13-G10
Alternator	Stamford
Control panel	Deepsea DSE6120
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	400	500
Standby Power (ERP)	420	550

Voltage	400V
Rated current	722 Amps
Fuel consumption	@100% load L/h 101
Noise Level	84 dB(A) at 7m

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	4200 x 1665 x 2530	5100	780

Datasheets

Generator:	Engine:	Alternator:
500kVA GFE550CSC	Cummins QSZ13-G10	Stamford S5L1D-C4
