GFE Cummins-Powered 50kVA Diesel Generator - GFE55CSC

Call Now

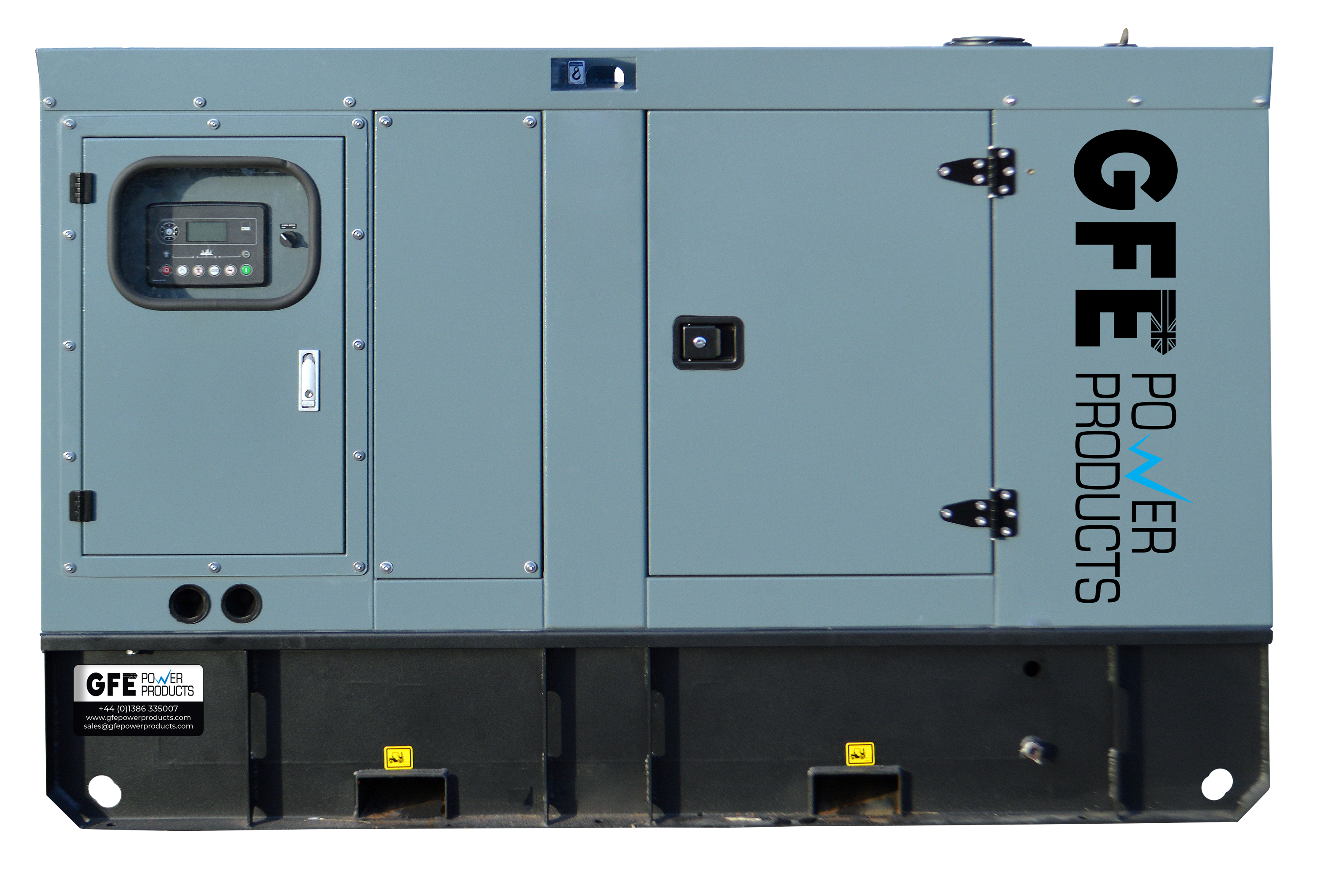

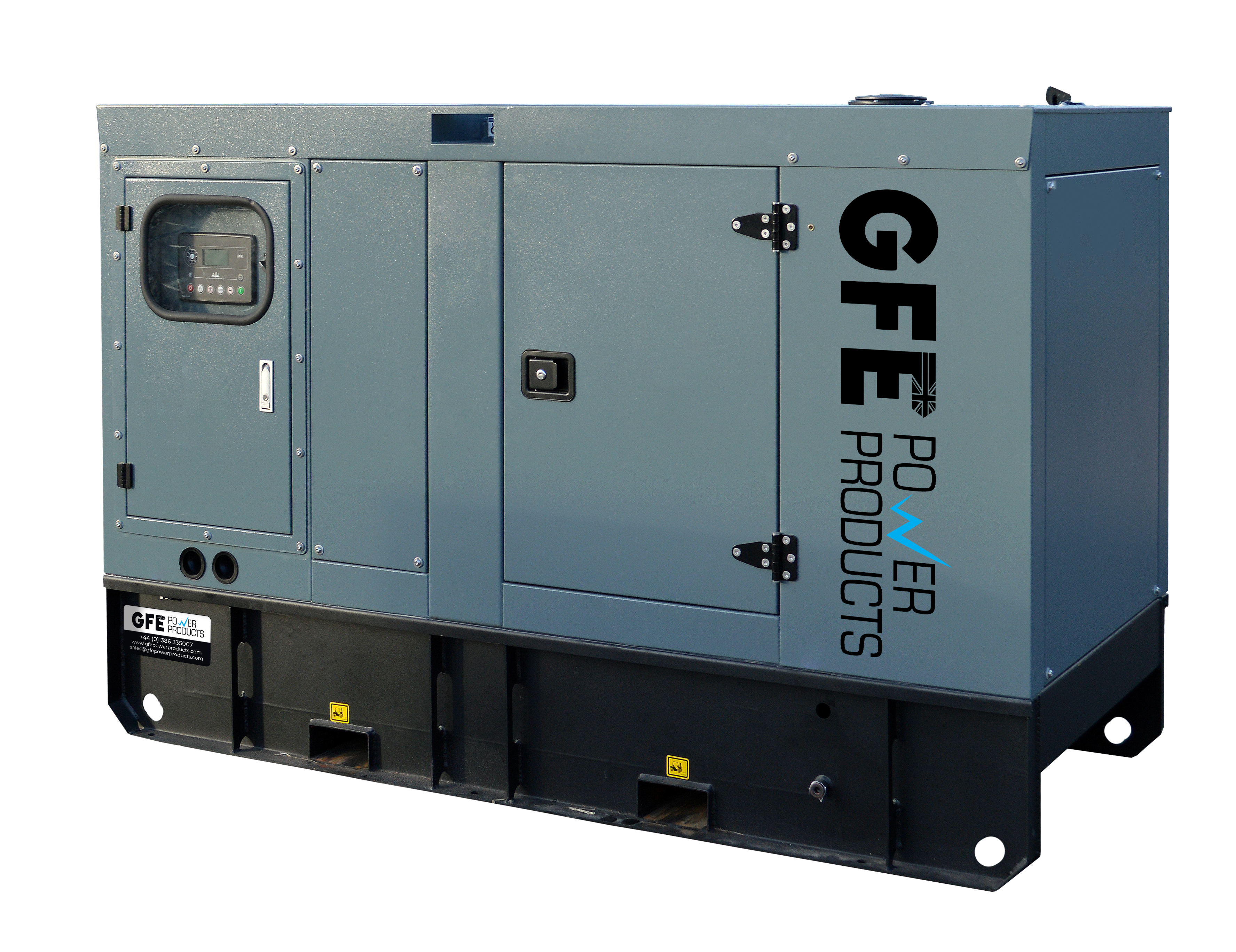

The GFE55CSC is a reliable and efficient diesel generator powered by the Cummins 4BTA3.9-G2 engine, delivering 55kVA standby power and 50kVA prime power. Designed for dependable operation in commercial, industrial, and backup power applications, it is paired with a Stamford S1L2-R1 alternator to ensure stable and consistent power output. The generator features a Deepsea DSE6120 control panel for clear monitoring of system performance and load conditions. Operating at 1500rpm and 50Hz, it supplies 400V three-phase power with a rated current of 72 amps and fuel consumption of 14 L/h at full load. Housed within a durable canopied enclosure, the GFE55CSC maintains a low operating noise level of 73 dB(A) at 7 metres, making it well suited for a wide range of standby and prime power installations.

Model reference	GFE55CSC (Canopied)
Engine	Cummins 4BTA3.9-G2
Alternator	Stamford S1L2-R1
Control panel	Deepsea DSE6120
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	40	50
Standby Power (ERP)	44	55

Voltage	400V
Rated current	72 Amps
Fuel consumption	@100% load L/h 14
Noise Level	73 dB(A) at 7m

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	2450 x 1065 x 1485	1100	110
Open

Datasheets

Generator:	Engine:	Alternator:
50kVA GFE55CSC	Cummins 4BTA3.9-G2	Stamford S1L2-R1

Unsure What Size Generator You Need?

Selecting the correct generator size starts with understanding your power requirements. Our kVA calculator allows you to calculate the kVA needed based on your power requirements, helping you choose a generator that fits your application.

try our kva calculator
