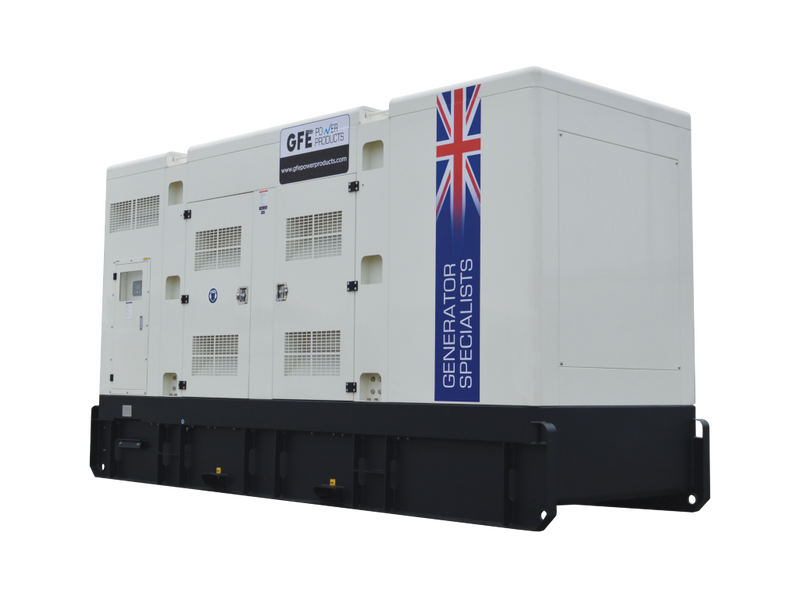

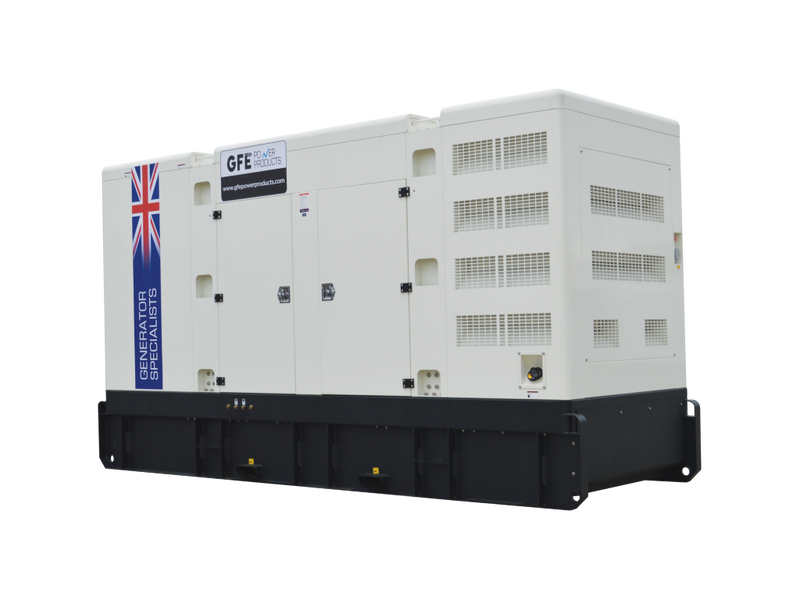

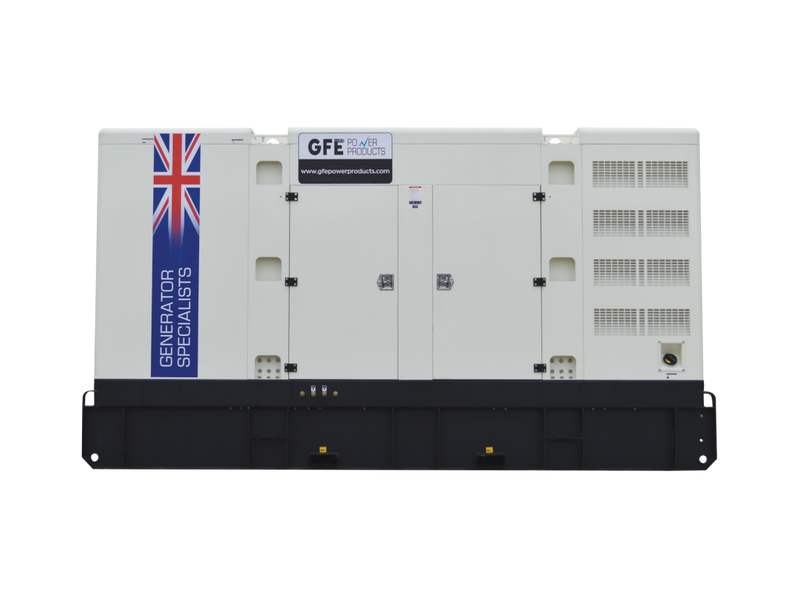

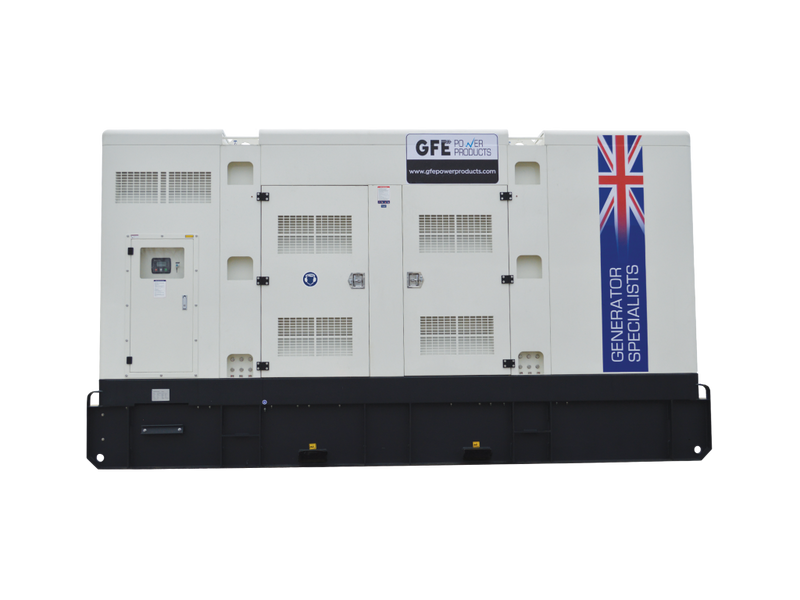

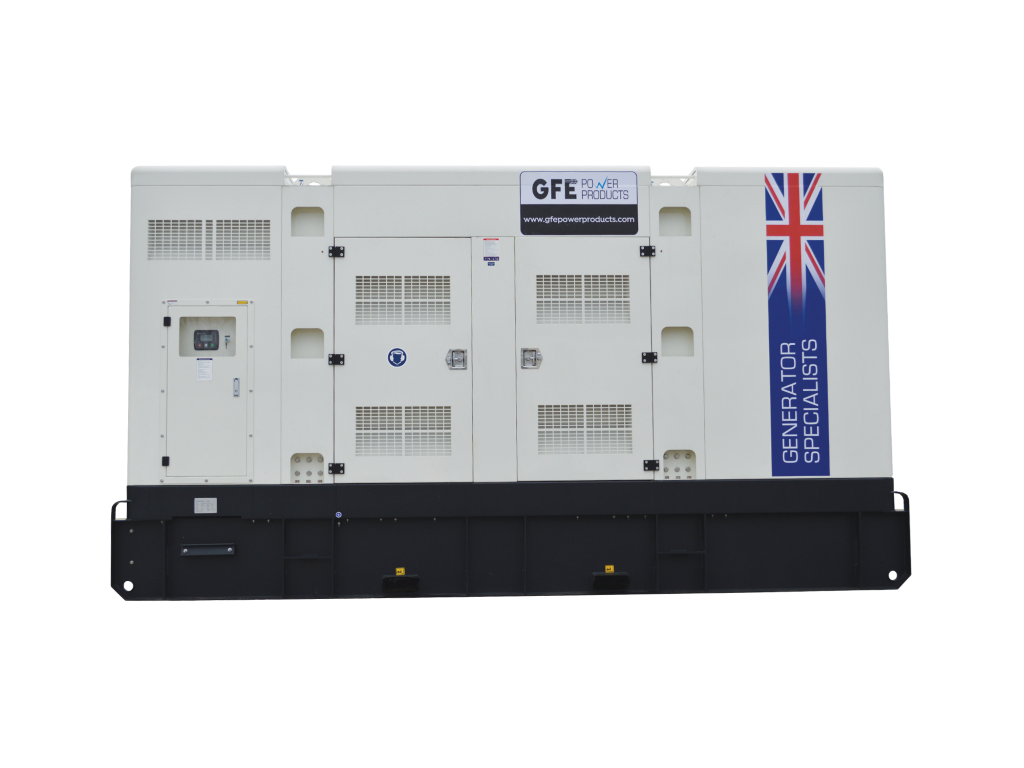

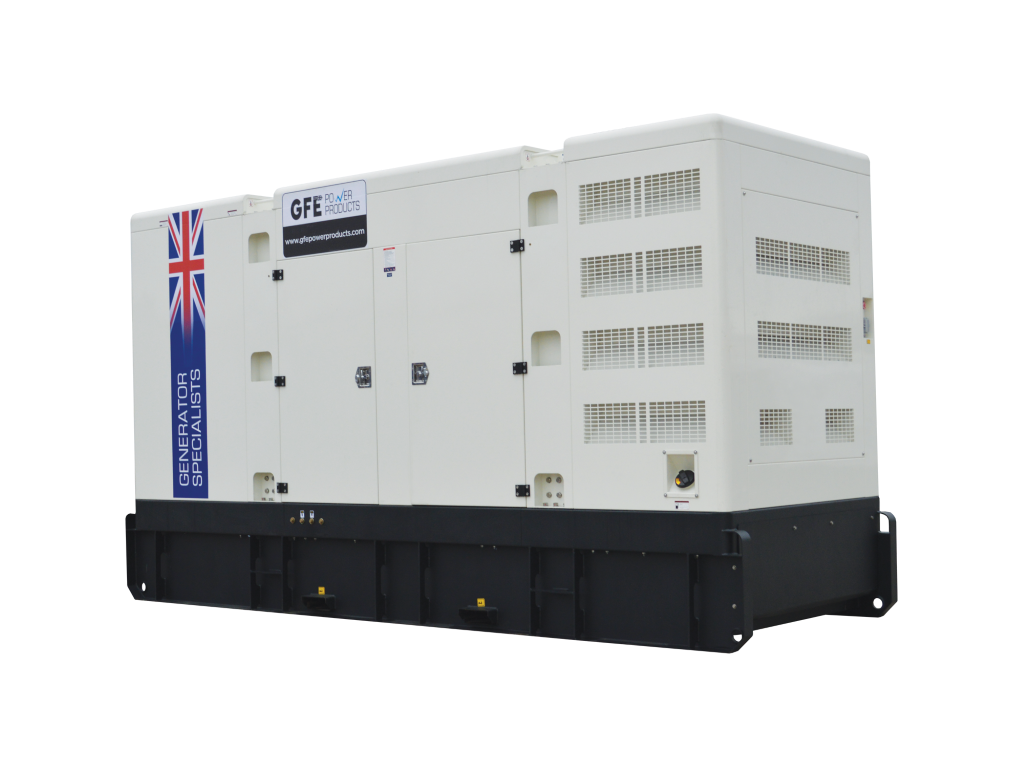

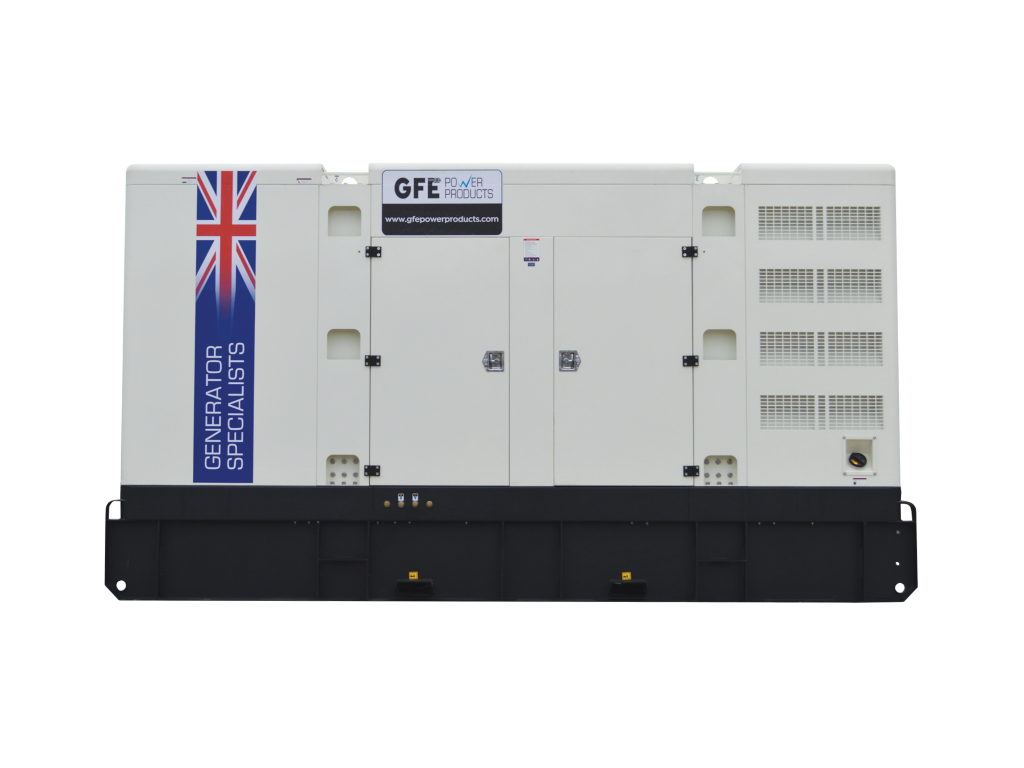

Perkins GFE440PLC 440kVA

ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference GFE440PLC (Canopied) / GFE440PLO (Open)
Engine Perkins 2206C-E13TAG3
Alternator Leroy Somer TAL-047-A
Control panel Deepsea DSE4520
Frequency 50Hz
Engine speed 1500rpm
Phase / Poles 3-Phase / 4-Pole


Ratings

kWe kVA
Prime Power (PRP) 320 400
Standby Power (ERP)
352 440

Voltage
400V
Rated current 577 Amps
Fuel consumption @100% load L/h 85



Overall dimensions

Frame type Dimensions Weight Base tank
@100% load

(L x W x H) mm kg Litres
Canopied 4400 x 1422 x 2430 4290 696
Open 3480 x 1150 x 2030 3300 614


Datasheets

 GFE440PLC Engine Alternator
