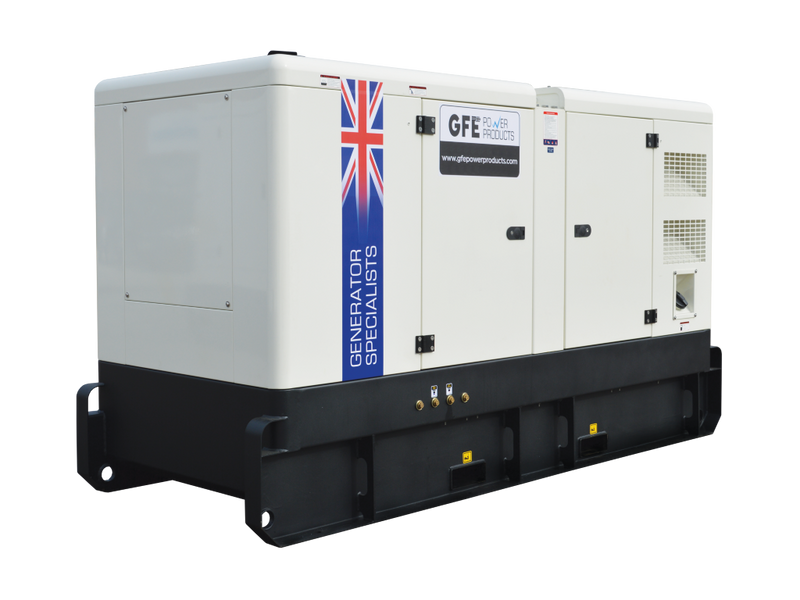

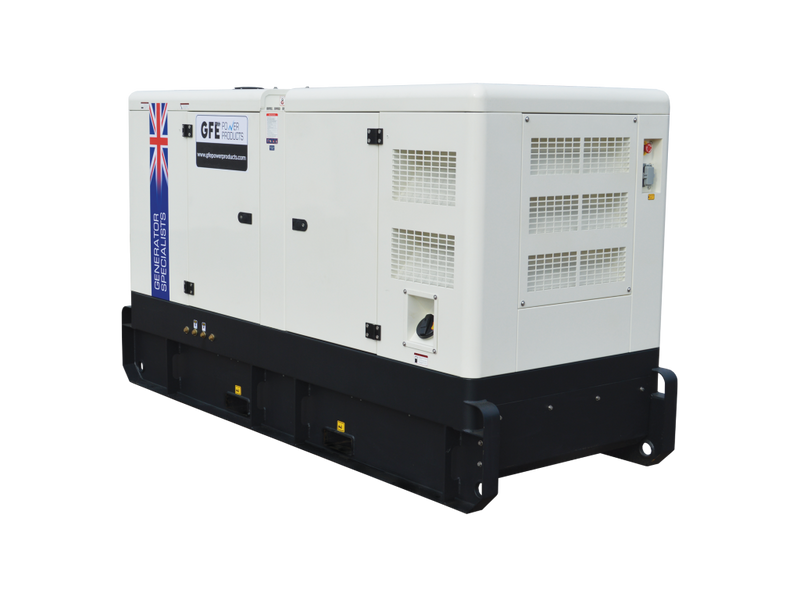

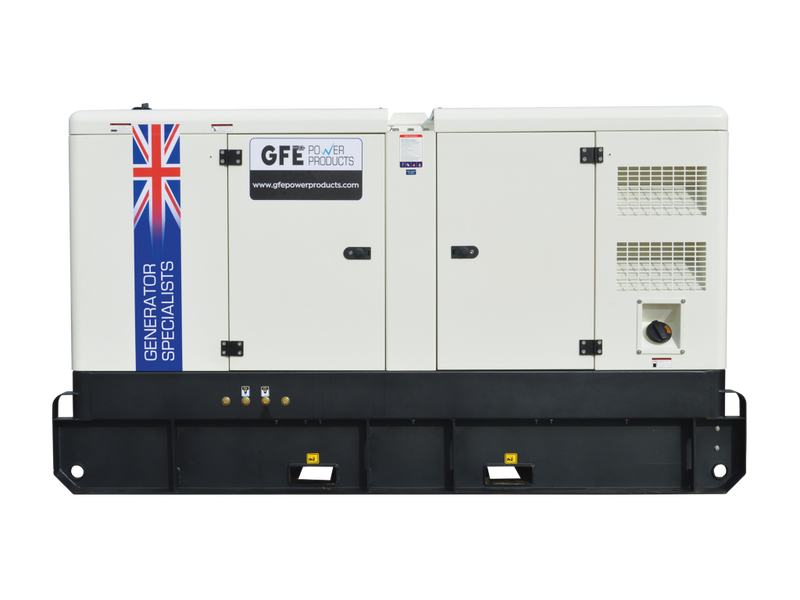

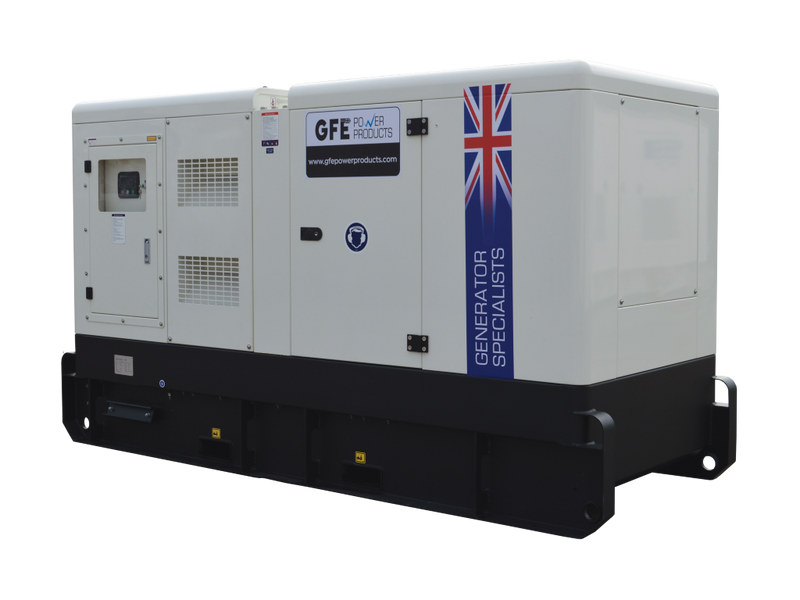

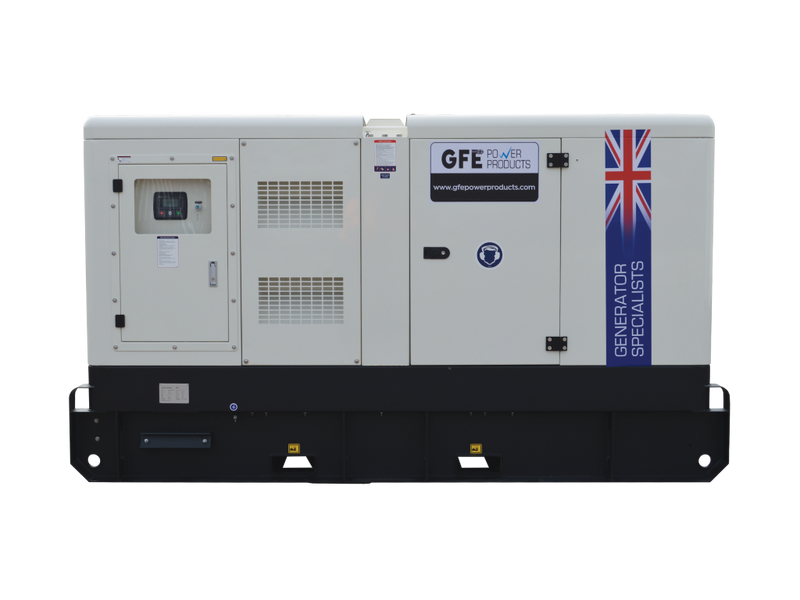

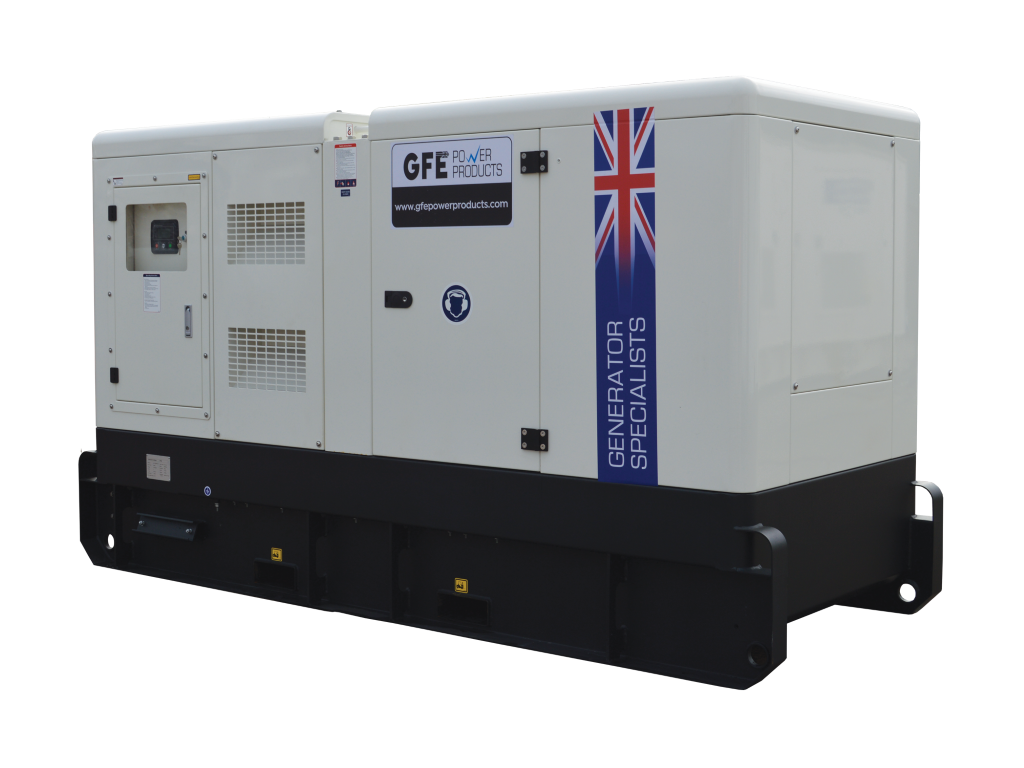

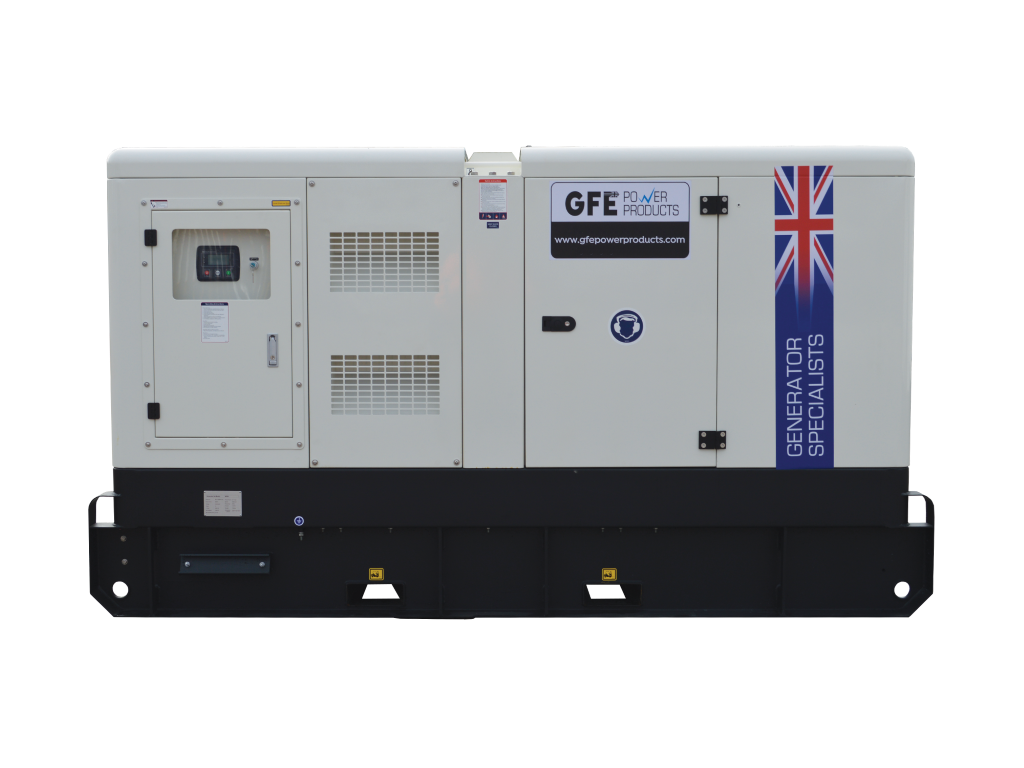

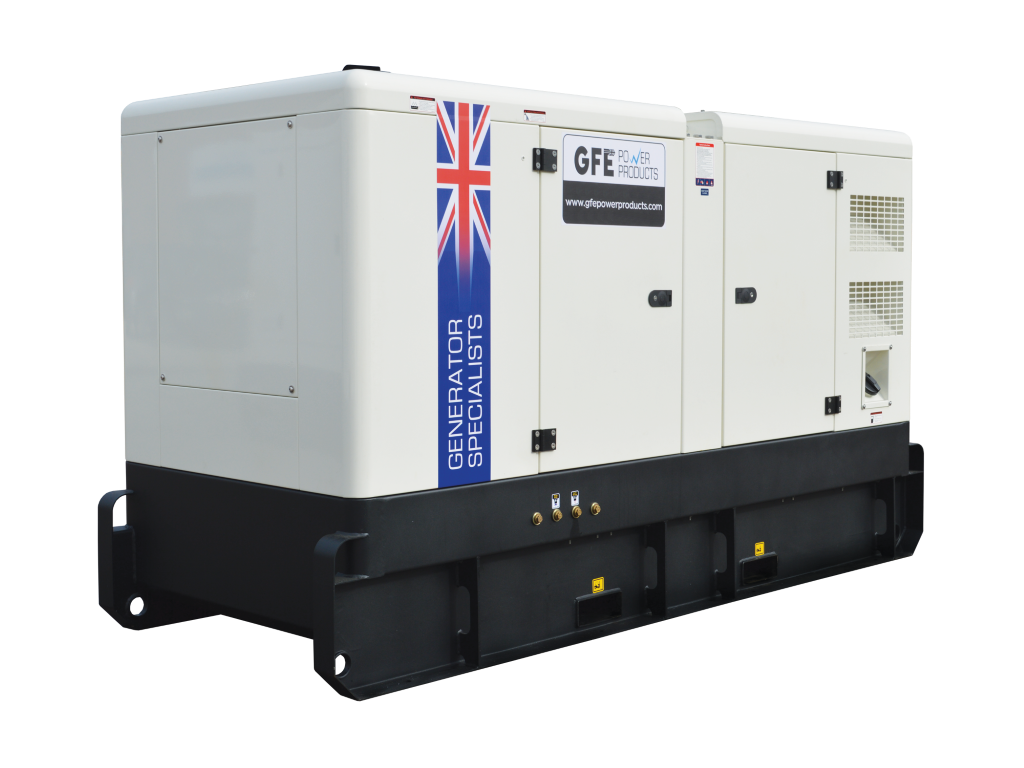

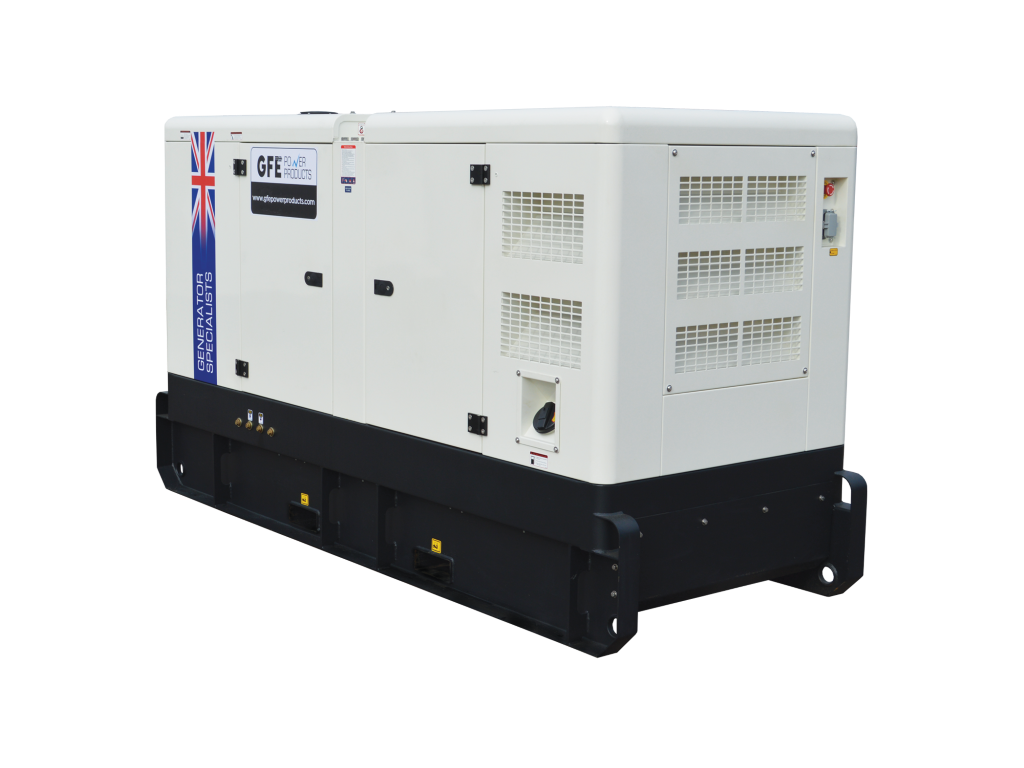

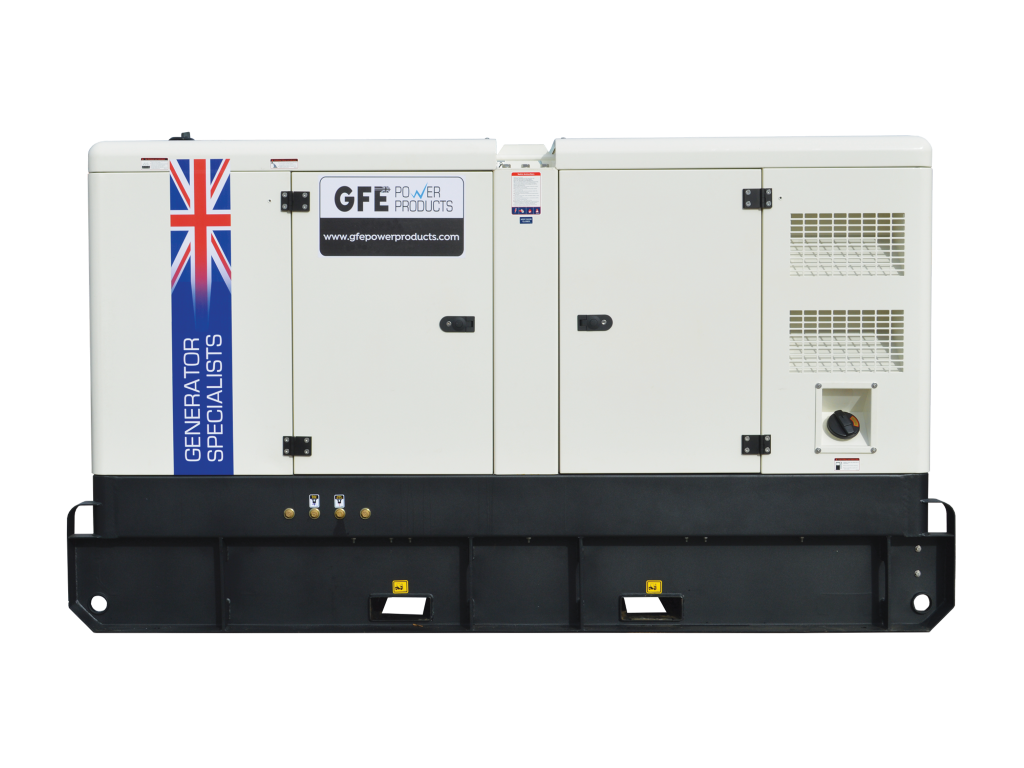

Perkins 88kVA Diesel Generator - GFE88PLC-PRO
£0
ENQUIRE ABOUT THIS GENERATOR
DOWNLOAD GENERATOR DATA SHEET
Our most compact GFE Perkins Powered diesel range packs a punch. With world renowned Leroy Somers alternators and Deepsea control panels fitted as standard. This range is ideal for when you have limited space on site, or you are looking towards lower logistics costs. Our breadth of stock means that whether your focus is on economy, emissions and/or speed of delivery we have the right power solution for you.
| Model reference | GFE88PLC-PRO (Canopied) / GFE88PLO-PRO (Open) |
| Engine | Perkins 1104A-44TG2 |
| Alternator | Leroy Somer TAL-044-C |
| Control panel | Deepsea DSE4520 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 64 | 80 |
|
Standby Power (ERP) |
70.4 | 88 |
|
Voltage |
400V |
| Rated current | 115 Amps |
| Fuel consumption | @100% load L/h 18.7 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 2800 x 1130 x 1580 | 1580 | 280 |
| Open | 2200 x 700 x 1350 | 1080 |
155 |
Datasheets
| GFE88PLC | Engine | Alternator | |
 |
|
|
