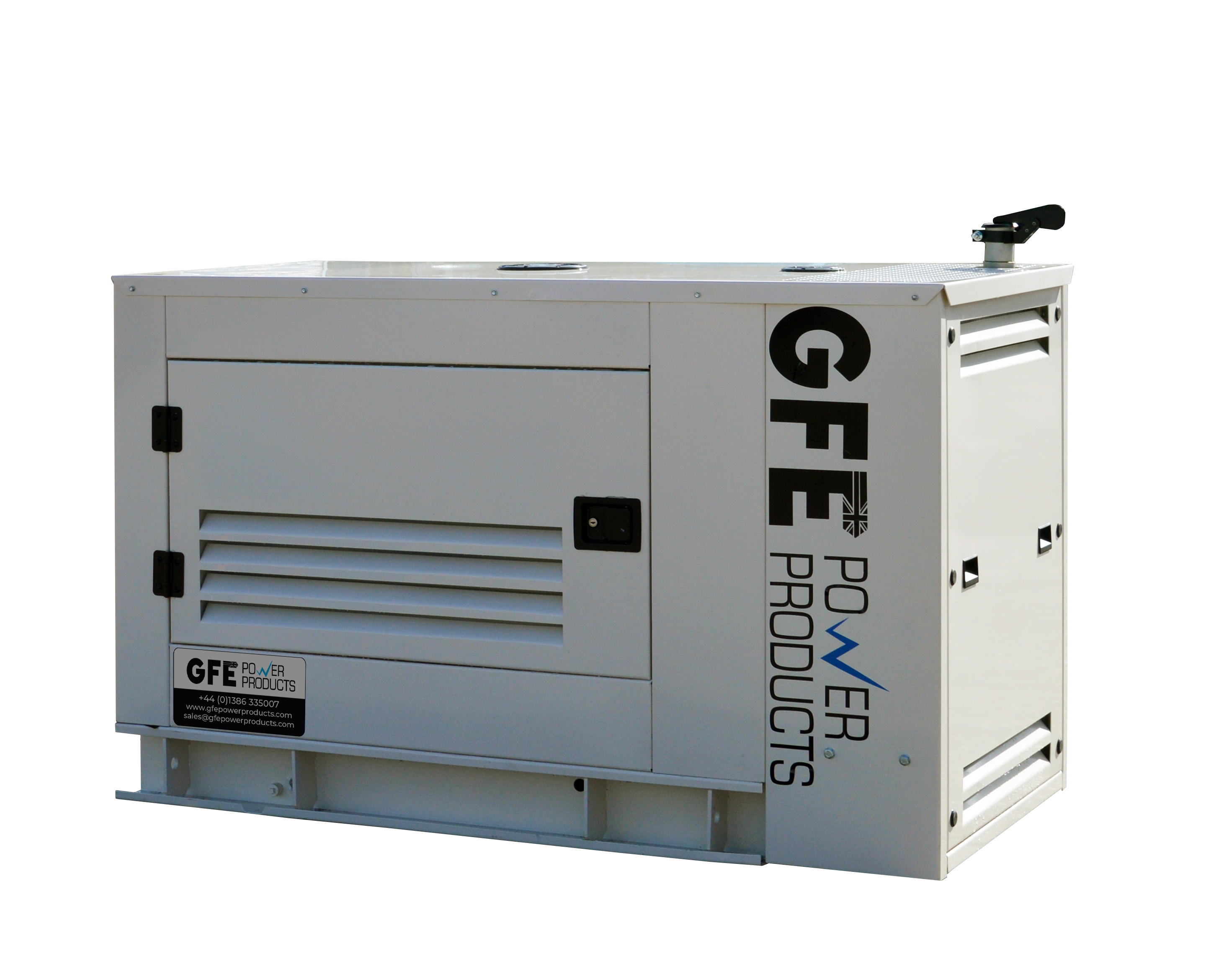

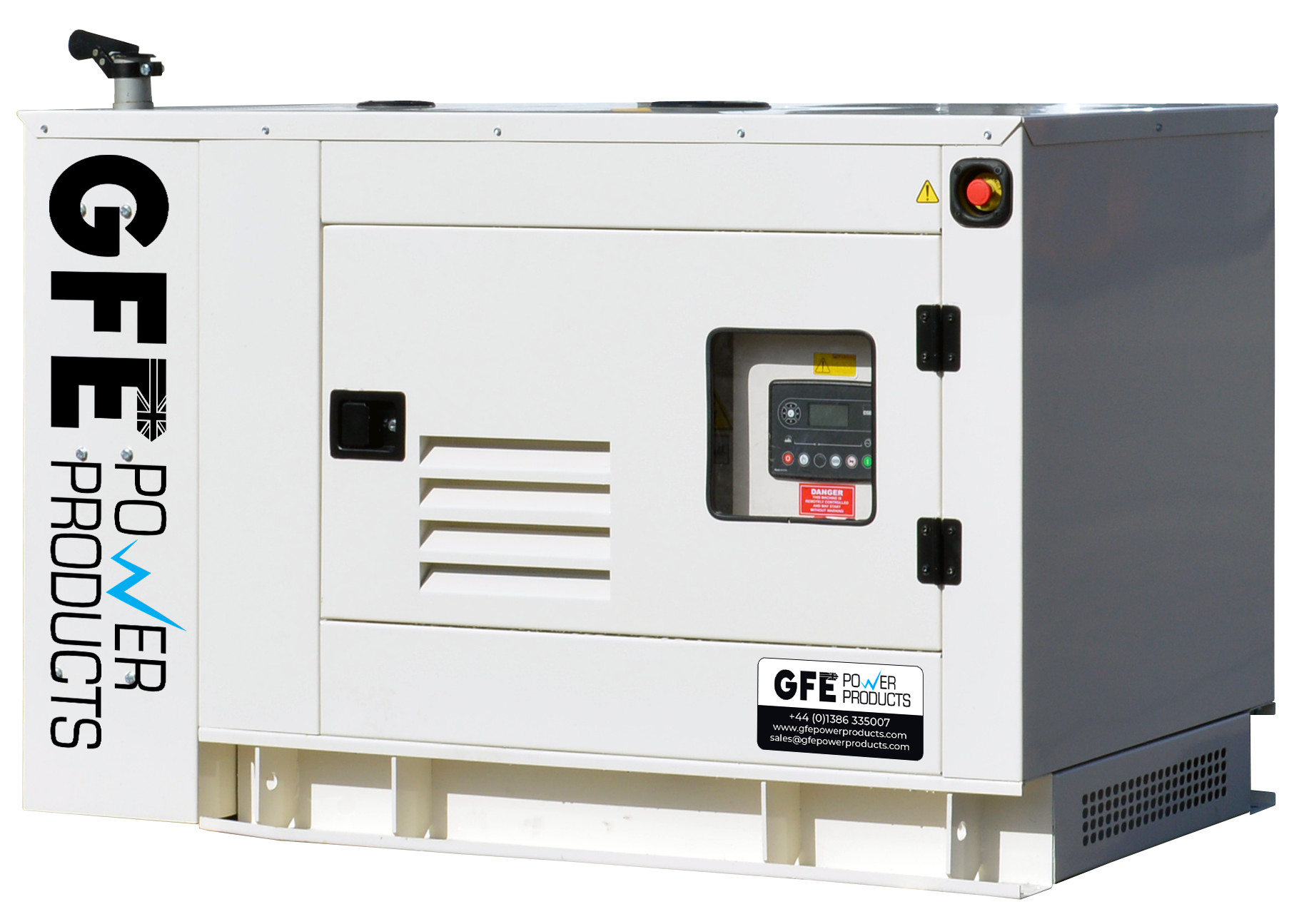

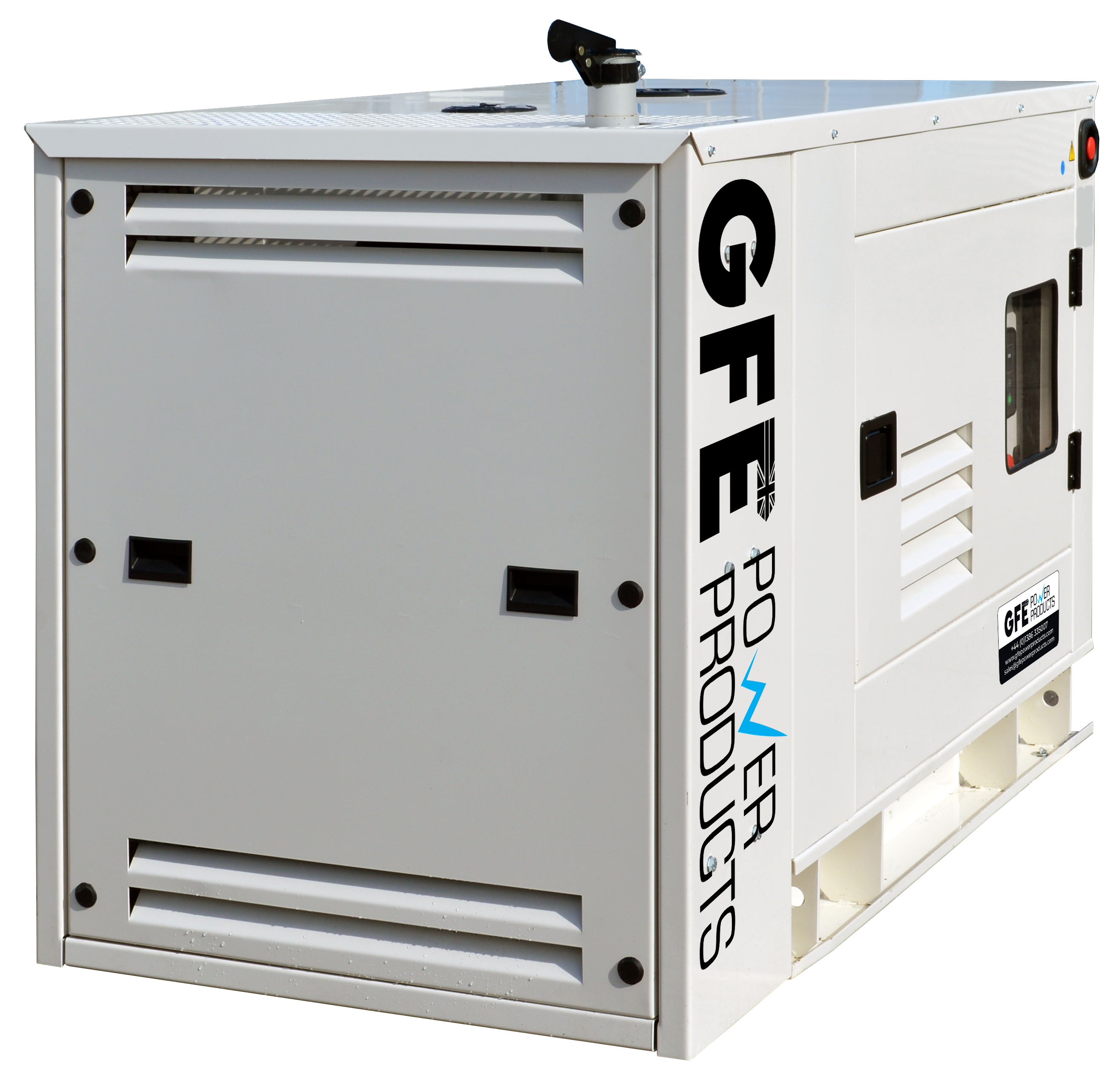

GFE22PLC Perkins Diesel Generator - 22kVA
Introducing our highly efficient GFE Perkins Powered diesel generators that deliver impressive performance across the entire range. Equipped with renowned Leroy Somer alternators and Deep Sea control panels as standard, this range is perfect for sites with limited space or those aiming to reduce logistics expenses. With a wide range of options available, we can provide the ideal power solution tailored to your priorities, whether it's economy, emissions, or speedy delivery.
| Model reference | GFE22PLC (Canopied) / GFE22PLO (Open) |
| Engine | Perkins 404A-22G |
| Alternator | Leroy Somer TAL-040-F |
| Control panel | Deep Sea DSE6110 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 16 | 20 |
|
Standby Power (ERP) |
17.6 | 22 |
|
Voltage |
400V |
| Rated current | 29 Amps |
| Fuel consumption | @100% load L/h 5.3 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 1850 x 960 x 1200 | 765 | 85 |
| Open | 1270 x 520 x 1430 | 475 | 50 |
Datasheets
| Generator: | Engine: | Alternator: |
| 20kVA GFE22PLC | Perkins 404A-22G | Leroy Somer TAL-040-F |
 |
|
|
