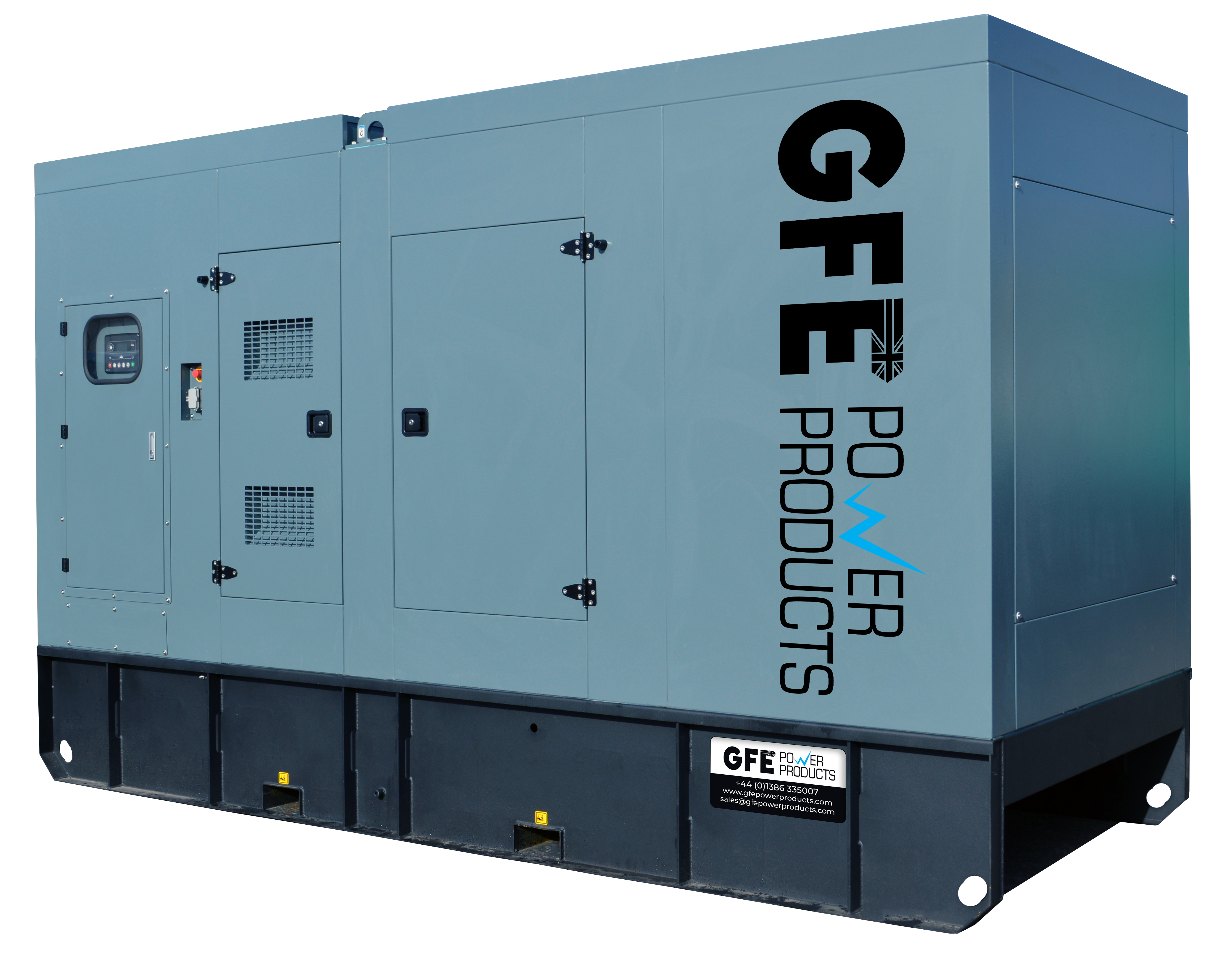

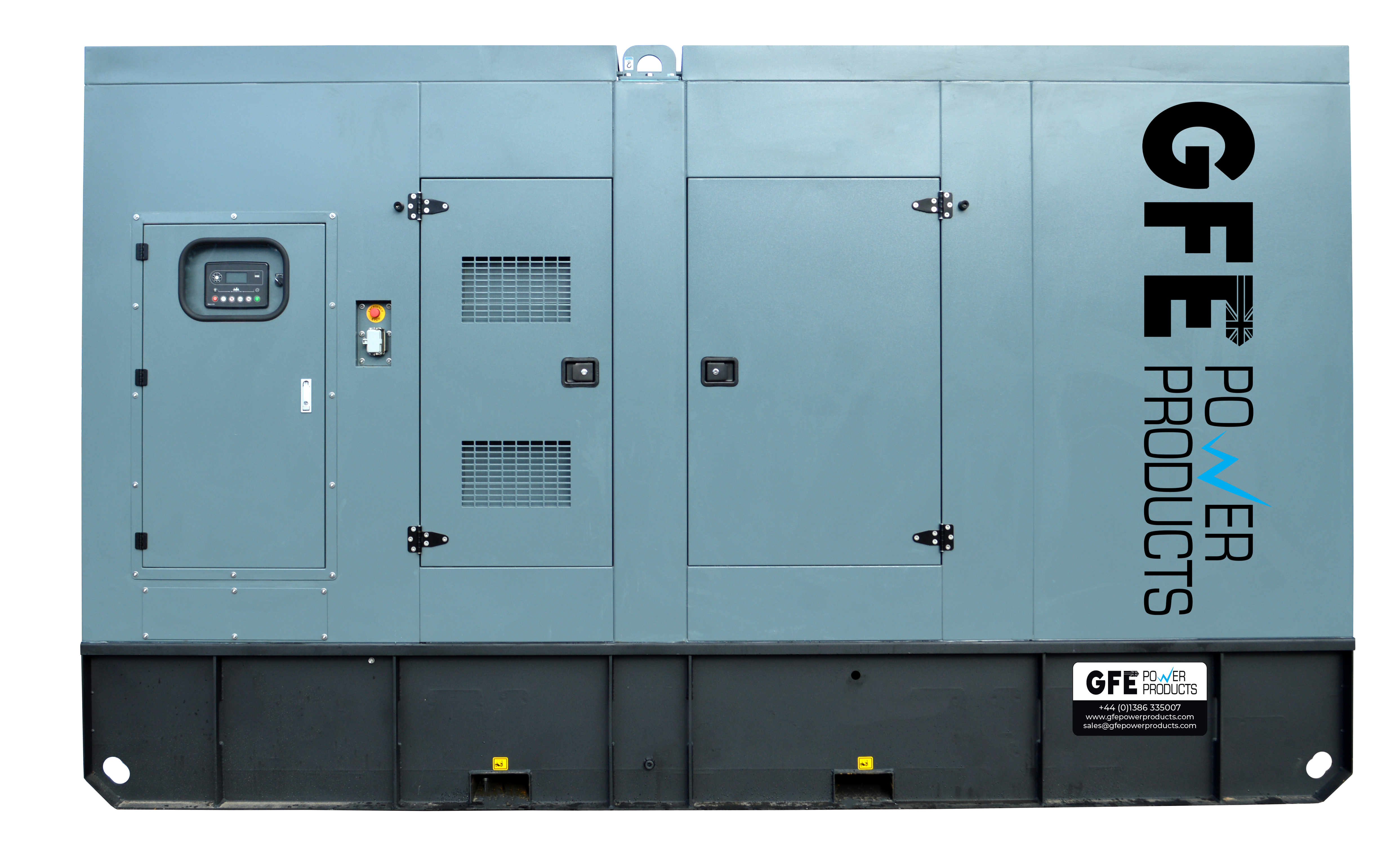

GFE550PLC Perkins Diesel Generator - 500kVA

Name: GFE550PLC Perkins Diesel Generator - 500kVA
Brand: GFE Perkins Powered
Availability: InStock

Housing:

Open Canopied

Tank:

8 hour bunded tank 24 hour bunded tank

Variant

As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.

Model reference	GFE550PLC (Canopied) / GFE550PLO (Open)
Engine	Perkins 2506A-E15TAG2
Alternator	Leroy Somer TAL-047-C
Control panel	Deepsea DSE6110
Frequency	50Hz
Engine speed	1500rpm
Phase / Poles	3-Phase / 4-Pole

Ratings

	kWe	kVA
Prime Power (PRP)	400	500
Standby Power (ERP)	440	550

Voltage	400V
Rated current	722 Amps
Fuel consumption	106 @100% load L/h 100

Overall dimensions

Frame type	Dimensions	Weight	Base tank @100% load
	(L x W x H) mm	kg	Litres
Canopied	3650 x 1120 x 2075	3797	970
Open	3850 x 1150 x 2130	3750	1000

Datasheets

GFE550PLC	Engine	Alternator
