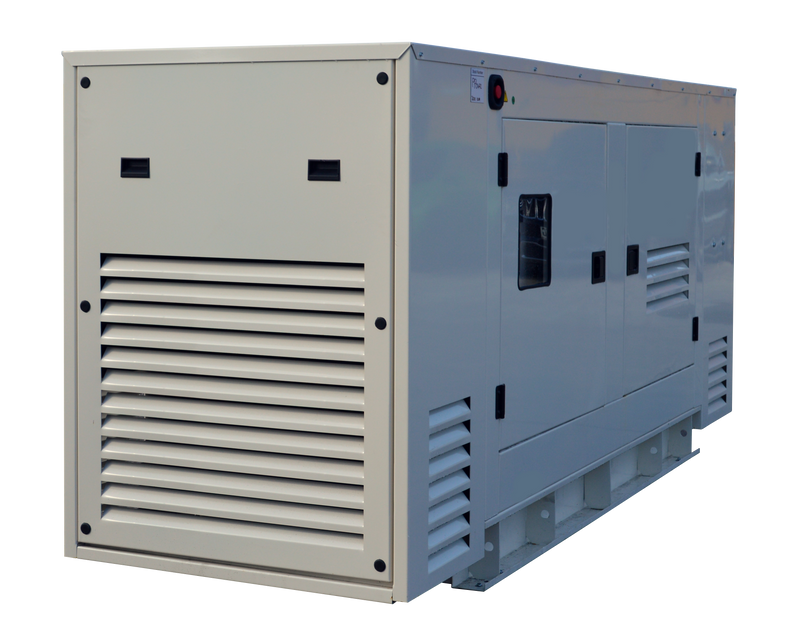

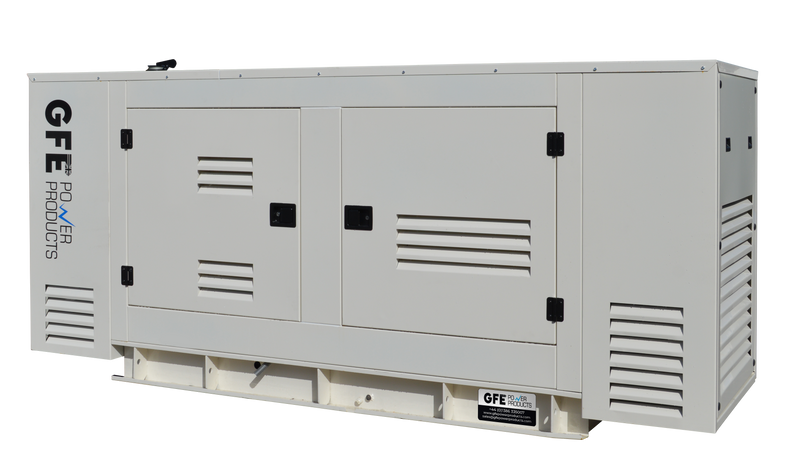

Perkins 300kVA Diesel Generator - GFE330PLC
As output demands increase the 251-550kVA GFE Perkins Powered range is ready to meet the challenge even in the harshest environments. Built around world class Perkins engines and incorporating Leroy Somers alternators and Deepsea controllers, this range is suitable for applications including agricultural, manufacturing, and heavy industrial.
| Model reference | GFE330PLC (Canopied) / GFE330PLO (Open) |
| Engine | Perkins 1506A-E88TAG5 |
| Alternator | Leroy Somer TAL-046-F |
| Control panel | Deepsea DSE6110 |
| Frequency | 50Hz |
| Engine speed | 1500rpm |
| Phase / Poles | 3-Phase / 4-Pole |
Ratings
| kWe | kVA | |
| Prime Power (PRP) | 281 | 300 |
|
Standby Power (ERP) |
307 | 330 |
|
Voltage |
400V |
| Rated current | 430 Amps |
| Fuel consumption | @100% load L/h 64.9 |
Overall dimensions
| Frame type | Dimensions | Weight | Base tank @100% load |
| (L x W x H) mm | kg | Litres | |
| Canopied | 5190 x 1630 x 2270 | 2378 | 650 |
| Open | 3520 x 1210 x 2150 | 3080 | 900 |
Datasheets
| GFE330PLC | Engine | Alternator | |
 |
|
|
